CHAPTER 2: Empress 4GL Programming Language

• Forms
• Windows
• Fields
• Keys
• Scripts

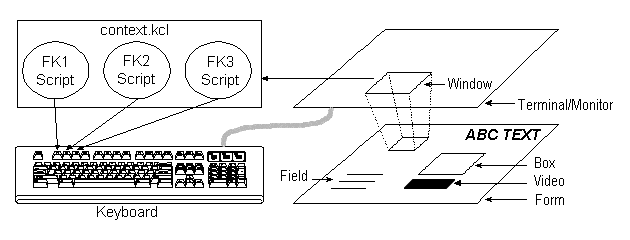

Figure 2-1

Data exchange takes place in the form's foreground, which consists of fields. Many fields can be defined on a form, and a field can consist of many field lines.

Text, lines, and boxes constitute the background of a form. The form background does not play an active role in data exchange. Rather, it provides a meaningful context for data input and output.

A form is always viewed through a window. A window must always fit on the screen, however, a form can be of any size. It can even be larger than the screen. When a form is larger than the window used to show it, it can be scrolled under the window to bring different parts of it into the visible area under the window. A form can have more than one window onto it and several windows onto the same form can be made to appear on the screen at one time.

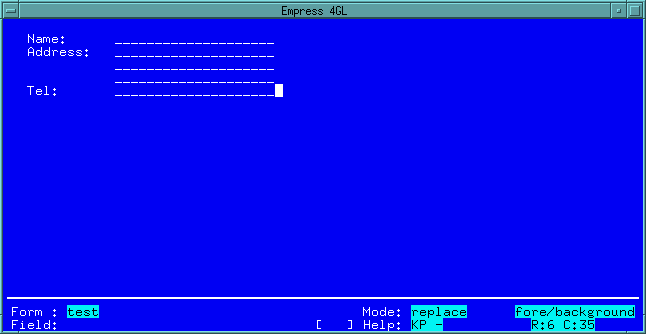

Figure 2-2  Example of a form

An example of a form is shown is the figure above. The form is created using the Form Editor through the Form Manager.

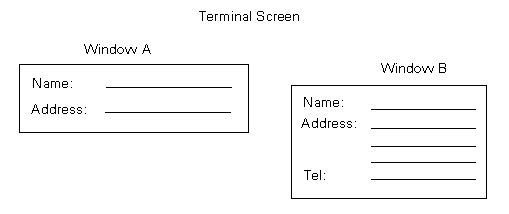

Figure 2-3  The form as it appears in windows

In the figure above, two windows in the same form are shown. These windows are deliberately smaller than the form to illustrate that different windows can give different views onto a form.

• The form background consists of the labels Name, Address, and Tel.The form foreground consists of three fields with the Address field having three lines.

• In window A, the bottom of the form is not visible. However, the form can be scrolled up to display the remaining portion. By scrolling in this manner, the window does not move relative to the terminal screen, rather, the form moves under the window to make another part of the form visible.

• In window B, the right side of the form is not visible. Here, the form can be scrolled to the left to display the rest of the form.

• Each view of the form may be scrolled independently.

When a window is defined, it is always given a specific location and size. However, a window can be moved to any position on the screen or resized to become larger or smaller by using the 4GL's script language commands.

An application can have many windows that may be shown and removed as required. More than one window can appear on the screen at one time. They may be physically separated from one another, or they may overlap. Overlapping windows are ordered from top to bottom, with the most recently displayed window on top. The top window is always completely visible.

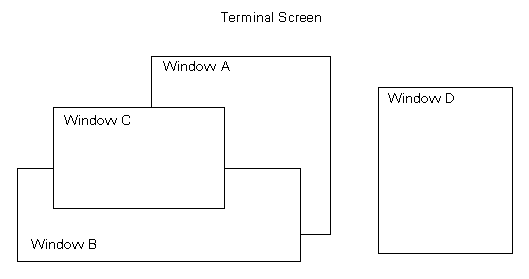

Figure 2-4  Four windows in a screen

In the figure above, four windows are shown on a screen. Windows A, B and C overlap, and of these, only window C is fully visible. Window A is obscured by the other two windows, which means that it appeared first. Window B appeared next, and window C appeared last. Window D is fully visible and stands apart from the other three windows - it may have appeared at any time.

Windows are defined in the windows section of an application.

• As part of a form, a field appears as a line or a series of lines that marks an area in which data can be displayed or entered. A field is like a slot on a form, with space for one or more lines of data. A field line has a definite length which is determined when the field is created.

• As a variable, a field is named when it is created, but its size is not determined. The field can be used anywhere in an application to assign and hold values.

• When a field appears in a window, its position and dimensions are determined by its definition on the form, while its value is determined by its contents as a variable. Since the length of a field line is limited, the value of the field may exceed the space available to display it. In that case, the value can be scrolled under the position of the field using the Field Editor.

1. We have a field which is 10 spaces long.

----------
2. We assign a string to the field.

let "WW"@"FF" = "John Longname";

3. Since the string is longer than the field, it appears to be truncated.

John Longn
4. We can use the <right> key to scroll the data.

a. ohn Longna
b. hn Longnam
c. n Longname
5. If the field has more than one line:

----------
----------
----------
6. Then long data will wrap around the extra lines.

John Longn
ame-------
----------
7. New lines in the text will be displayed normally. If the text assigned to the field were:

"Line one

Line wo crolls over and around"

Then it would appear like this:
Line one--
Line two s
crolls ove

Fields have characteristics, collectively called the field definition, that control their behaviour.

Here is a list of field characteristics which you can set through the Form Editor:

Table 2-1: List of Field Characteristics


Characteristic	Default Value
field name	Next available field number
video type	Normal
fill flag	No fill
field delimiter	None
fixed size field flag	No restriction
left/right entry flag	Left
edit pattern	None
domain name	None
window	None

2.3.1 Field Name

The field name is the name of the field and is provided by the user when the field is created. The maximum length for a field name is 32 characters. The default name is a next available field number.

The video type refers to the video characteristics of the field. The default value is normal video. The acceptable values depends on the type of terminal. When you create fields, the Form Editor will list all the video types that are supported by your terminal.

The fill flag is used to indicate if the field will be made in the window even if it contains no value. If the value is y, then the displayed field will always be padded out to its full length with underscores. If the value is n, then the displayed field will only be as long as the value of the field. The default value is n for no fill.

The field delimiters are characters marking the beginning and end of a field. You may specify the left, right or both of the two delimiters. The default is set for no delimiters.

The fixed size flag is to restrict data input to the display length of the field. The default is for no restriction. The flag can have the following value:


n	for a normal field - that is, for unlimited data input.
f	for a fixed length field. Any character typed after the end of the field overwrites the last character.
b	for a fixed length field. Any character typed after the end of the field is ignored and a beep is issued.
a	for a fixed length field with auto skip. Once a character is typed into the last position of the field, the field is exited and the next field is entered.

The left/right entry flag determines whether data is entered into a field from the left or right edge of the field display. A value of "l" is set for a left entry; a value of "r" set is for a right entry. The default is left entry.

The edit pattern is used to control the entry and display of the data in a field. The default is no edit pattern defined. For details, please refer to Appendix A "Edit Patterns".

A domain is a set of field characteristics. It is a convenient way to assign a group of commonly used characteristics to a field. When a domain is specified in the definition of a field, the characteristics associated with the domain are incorporated into the field. Characteristics defined for the field through the Field Table window will override the values drawn from the domain. The fields are created through the Form Editor and the characteristics are defined in the Domain Table of the Application Editor.

If this field is filled in when you press the Edit Field Table key, then it is used as the value for the window name in the Field Table. The contents of this field will not affect the operation of the application in any way. This value is saved with the form and is the same for all the fields in a form.

Key contexts are defined in the Key Table of the Application Editor and are associated with windows in the key context field of the Window Table.

The contexts are pushed onto the key stack in reverse order, so the context listed first becomes the context on the top of the stack.

When a key is pressed, the 4GL searches each context beginning with the one on the top of the stack. The first definition of the key that it finds is run.

Conversely, a window with an empty key context associated with it will have no active key-driven functions available unless you define a global key context.

• pressing a function key
• an error occurring
• an interrupt detected
• entering a field
• exiting a field
• starting an application
• ending an application

Subscripts may be written to act as procedures or functions that can be called by any of the above scripts.

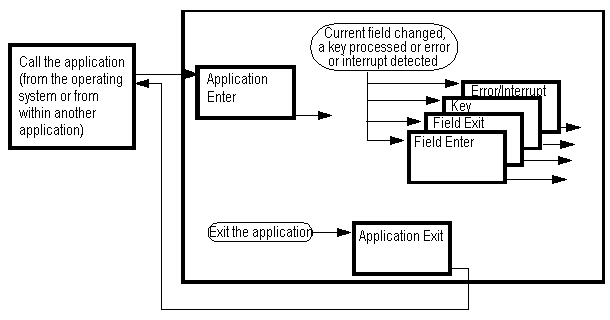

Figure 2-5  Flow of Control through Scripts

This diagram depicts the high-level flow of control within an application. The application begins with the enter script and ends with exit script, each of which is executed only once. The application enter script should pass control to a window, by making that window the "current" window. If no window is made current by the application's enter script, the 4GL will make the first window in its alphabetically sorted list of windows current whether it is showing or not.

Within a window, execution is governed by the following factors:

1. The window displays a form, and that form may have input/output fields. As each field becomes the current field (when the cursor moves to that field) the field exit script of the previous field and the field enter script of the new current field are executed.
2. Function keys may be associated with the window. If any function keys are pressed, the appropriate scripts will be executed.

You may quit the application by running an exit command or by pressing the Quit key unless it has been redefined by the application. At this time, before the application actually finishes, the exit script is run.


1. Variable Declarations

local

   char name;

   integer age;

end;

2. Control Statements

let number = 1;

while (number << 100)

   let number = number+1;

end;

3. Database Commands

select from "table"

   where "table"."attribute" = "window"@"field";

4. System Commands

call current_window ("window_name", "field_name");

The groups are:

• Variable Declarations
• Control Statements
• Database Statements
• System Functions
• Administrative Functions

Warning: Do not name variables, subscripts or user defined functions after any of the keywords in the name column of the following tables.

Table 2-6: Administrative Functions


Name	Description
compile_application	compile an application
compile_definition	compile a definition
compile_script	compile a script
copy_form	copy a form
copy_script	copy an application
create_application	create an application
create_default	create a default  application
create_menu	create a menu
debug_mode	turn the 4GL debugger on or off
delete_form	delete a form
delete_script	delete an application
edit_form	invoke the form editor
link_application	link an application
load_definition	load a previous saved AG definition into the AG system tables
rename_form	rename a form
rename_script	rename an application
